Color wählen
Ab $162.00

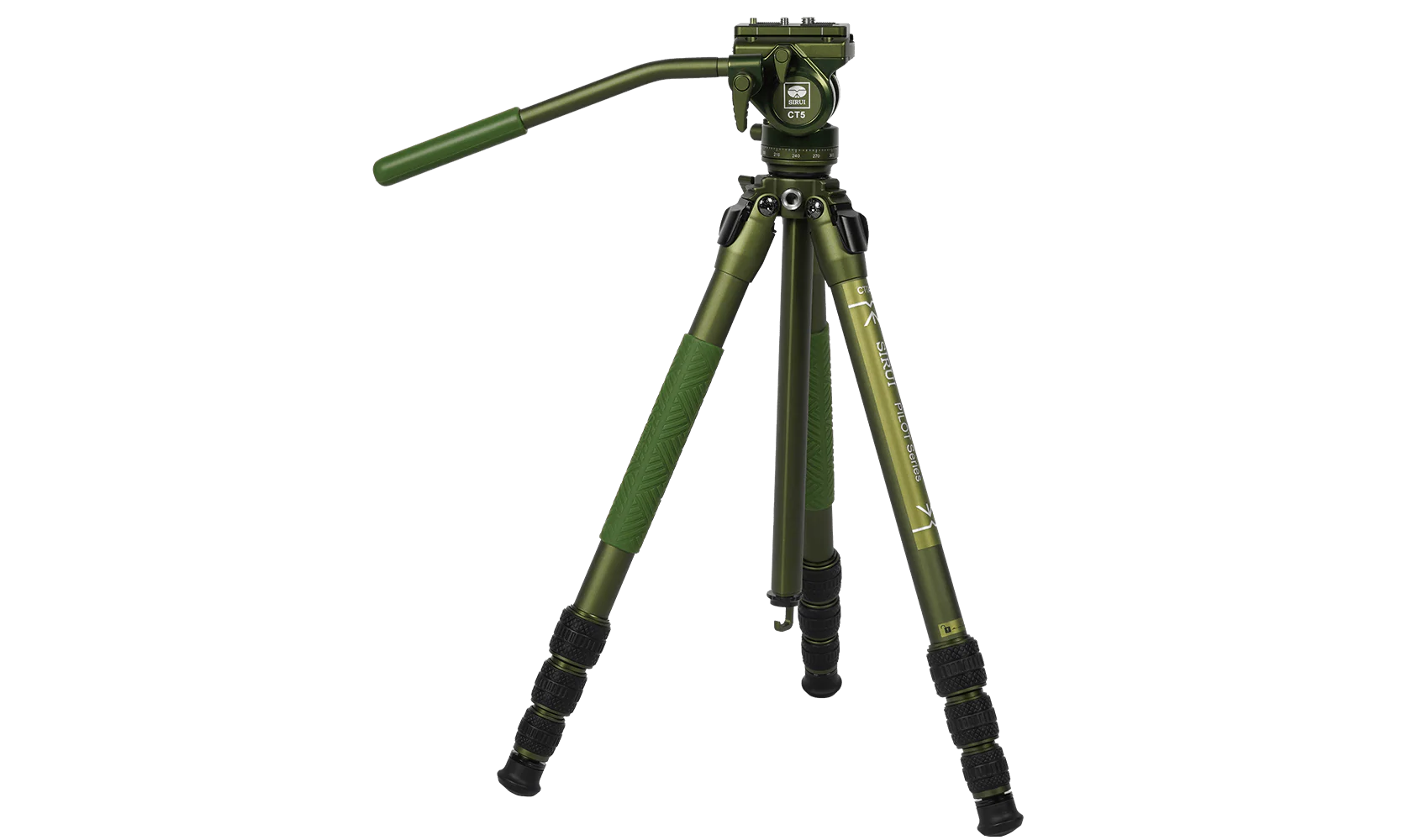

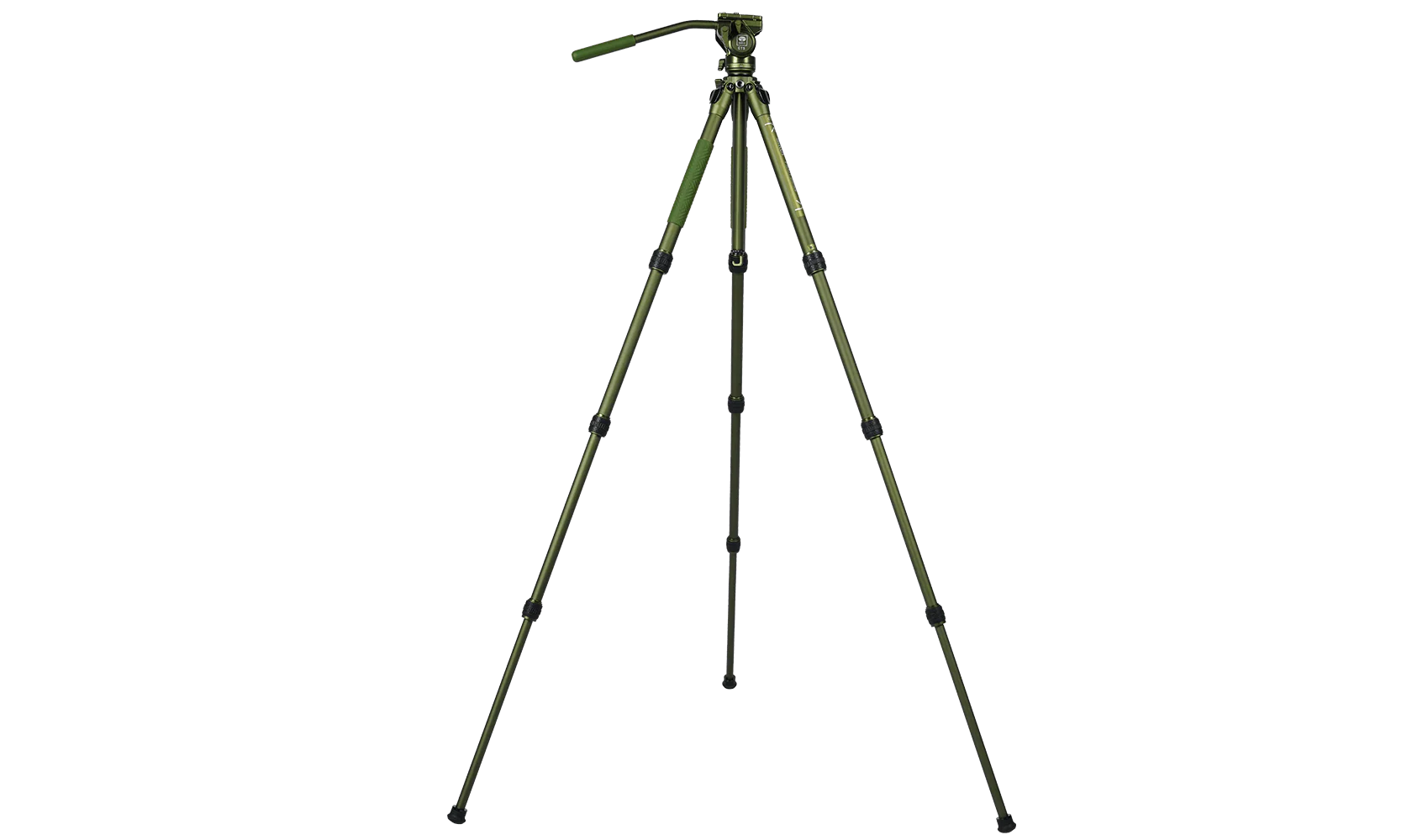

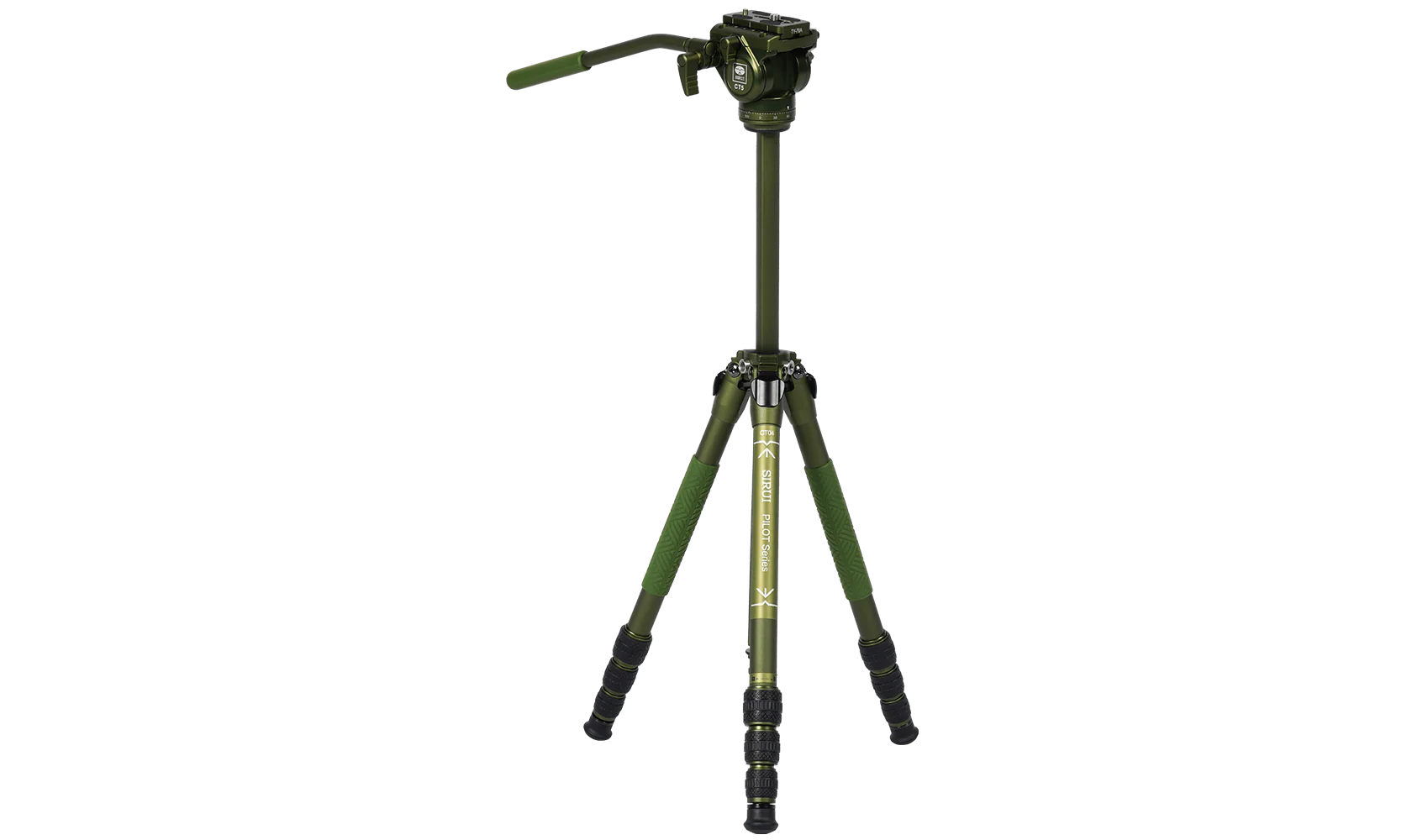

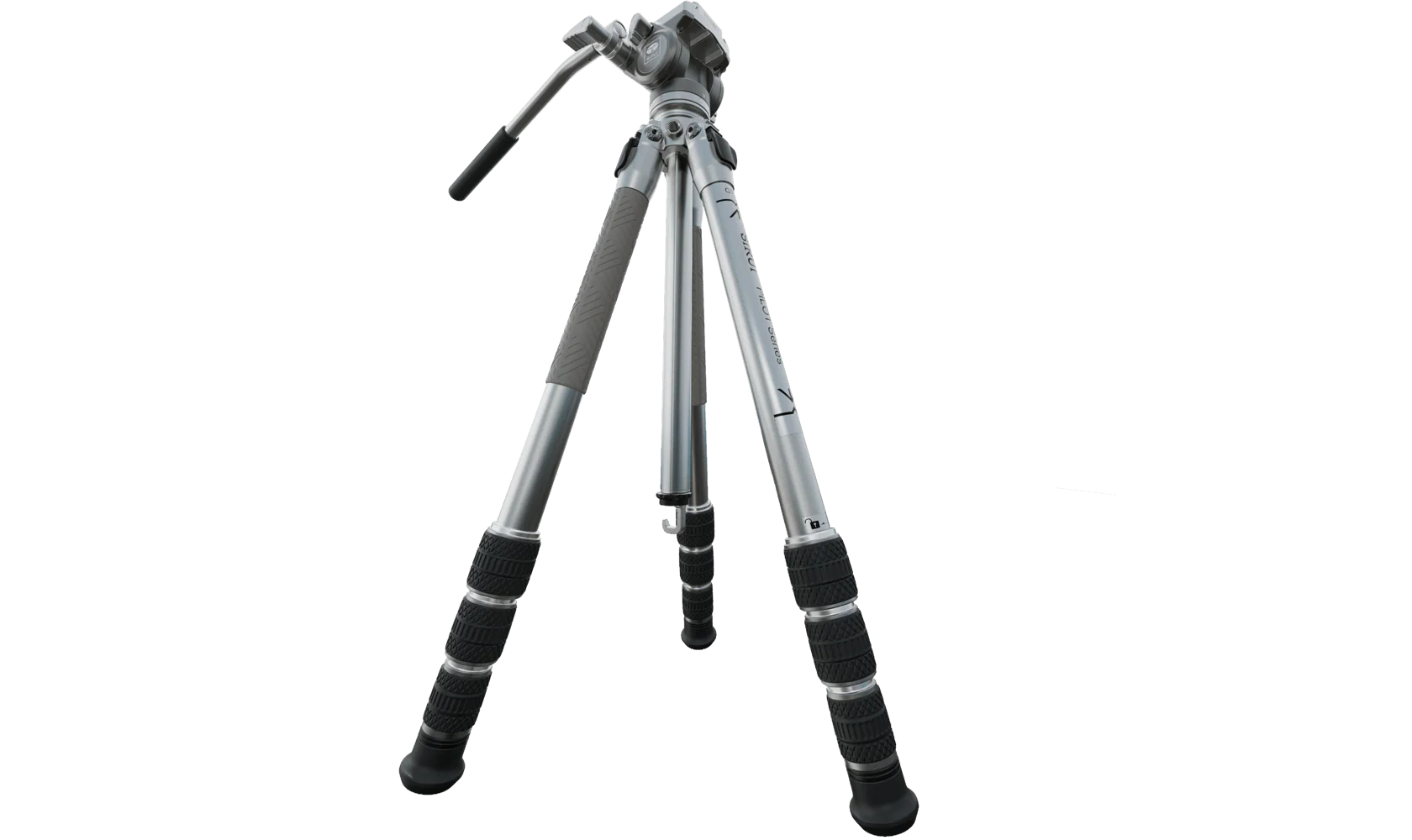

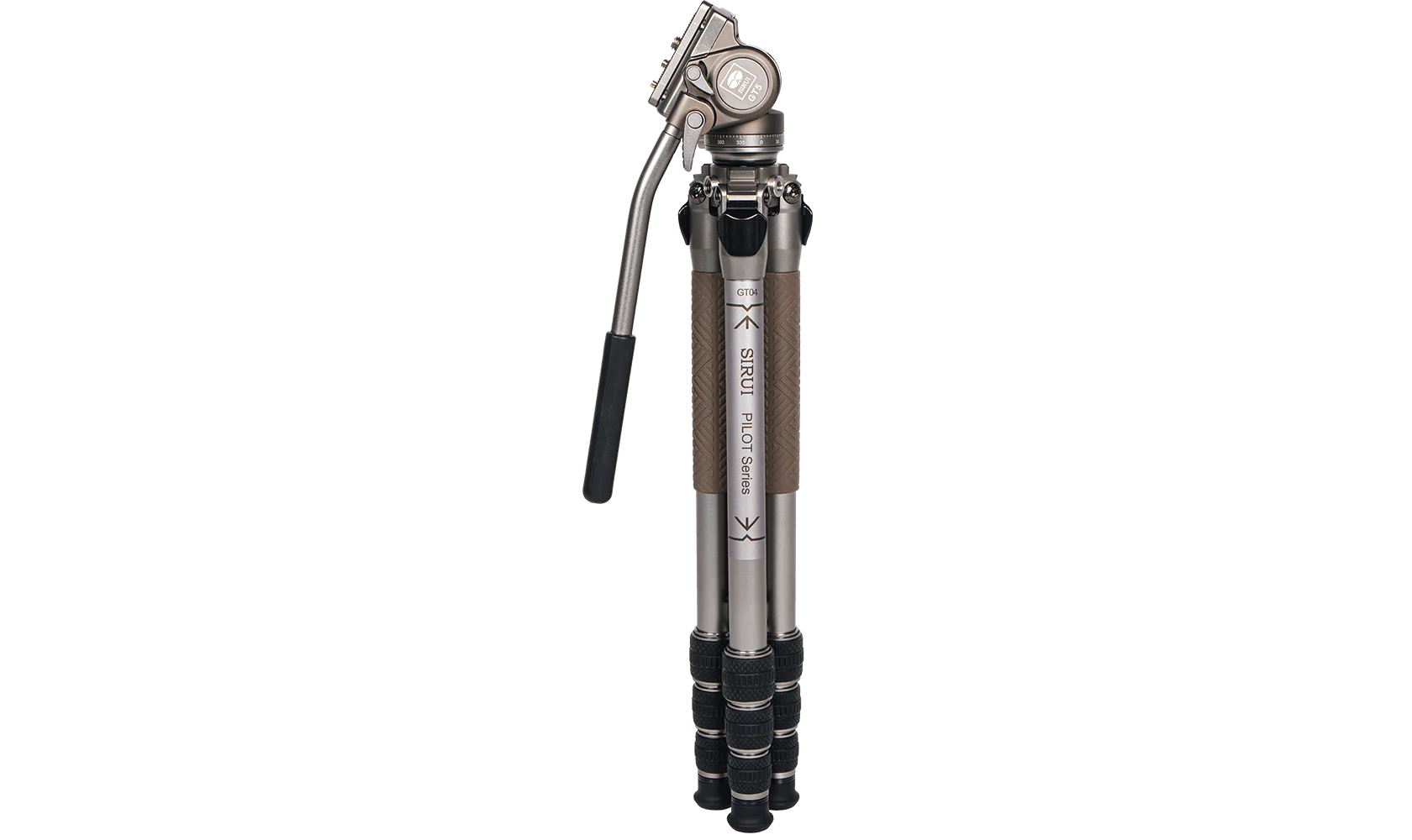

SIRUI Pilot Serie CT04+CT5/GT04+GT5 Video Stativ-Kit—
$162.00
Die Geschichte
SIRUI Pilot Series
Video Tripods Kit
Video Tripods Kit
CT04+CT5/GT04+GT5
Strong & Stable
(Max. Load: 10kg)
(Max. Load: 10kg)
Portable & Compact
Flexible Height Adjustment
Rubber Pad Metal Spikes
Fluid Video Head
Accessories
Strong & Stable
Strong aluminum alloy construction tripods
provide great stability during shooting.
provide great stability during shooting.
Max. Load: 10kg
Tripods Weight: 1.2kg
1/4"-20 or 3/8"-16
Self-Adaptive Thread
Self-Adaptive Thread
Press to switch between 1/4"-20 and 3/8"-16 threaded screw, which allows fast mounting different cameras.
1/4"-20 Screw
3/8"-16 Screw
Switch from 3/8"-16 to 1/4"-20 directly without insert nuts.
Pressing while rotating
Portable & Compact
Compared with traditional round shape column, triangle center column is designed to make tripods more portable and compact.
CT04/GT04
Triangle Center Column
Triangle Center Column
Traditional Round Shape Column
Flexible Height Adjustment
The center column is retractable for
easy adjustment and can also be
inverted to achieve ultra
low or high angle shooting.
01.
Retractable Center Column
Retractable Center Column
Kit Max Height
1483mm
1483mm
Kit Min Height
163mm
163mm

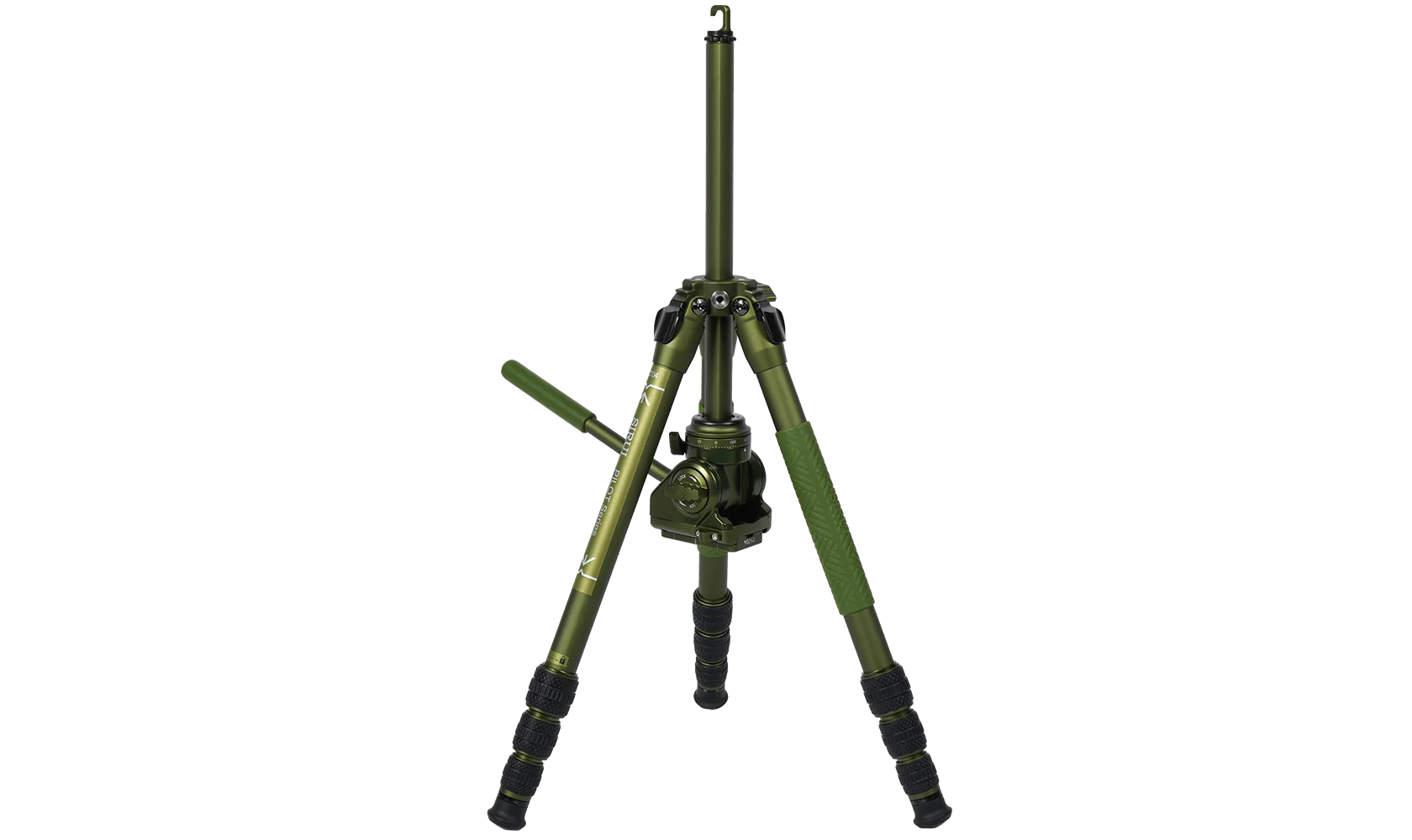

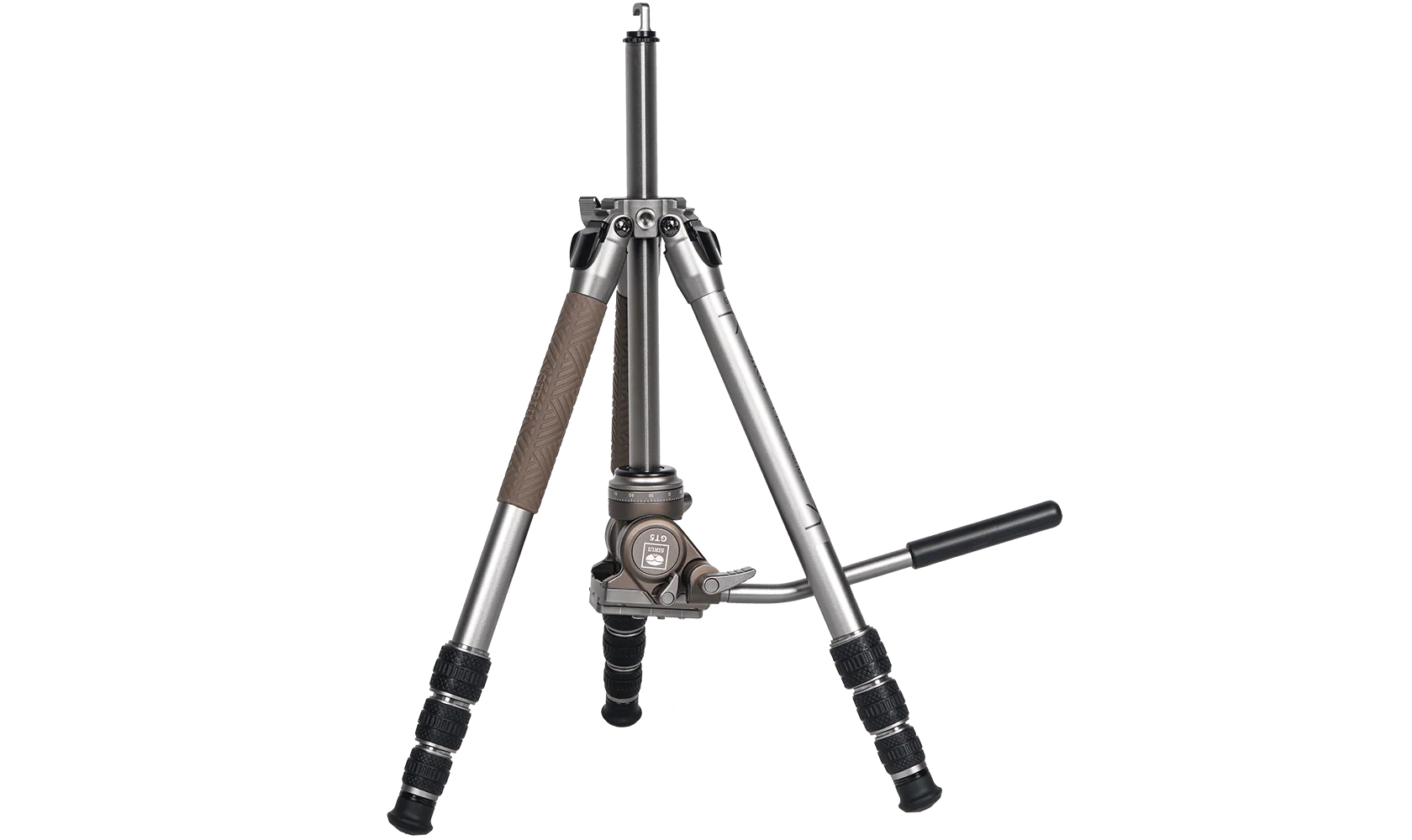

02.
Inverted
Center Column
Inverted
Center Column
Unscrew the hook and
remove the center column.
Invert it for ultra
low angle shooting.
Loosen
the hook

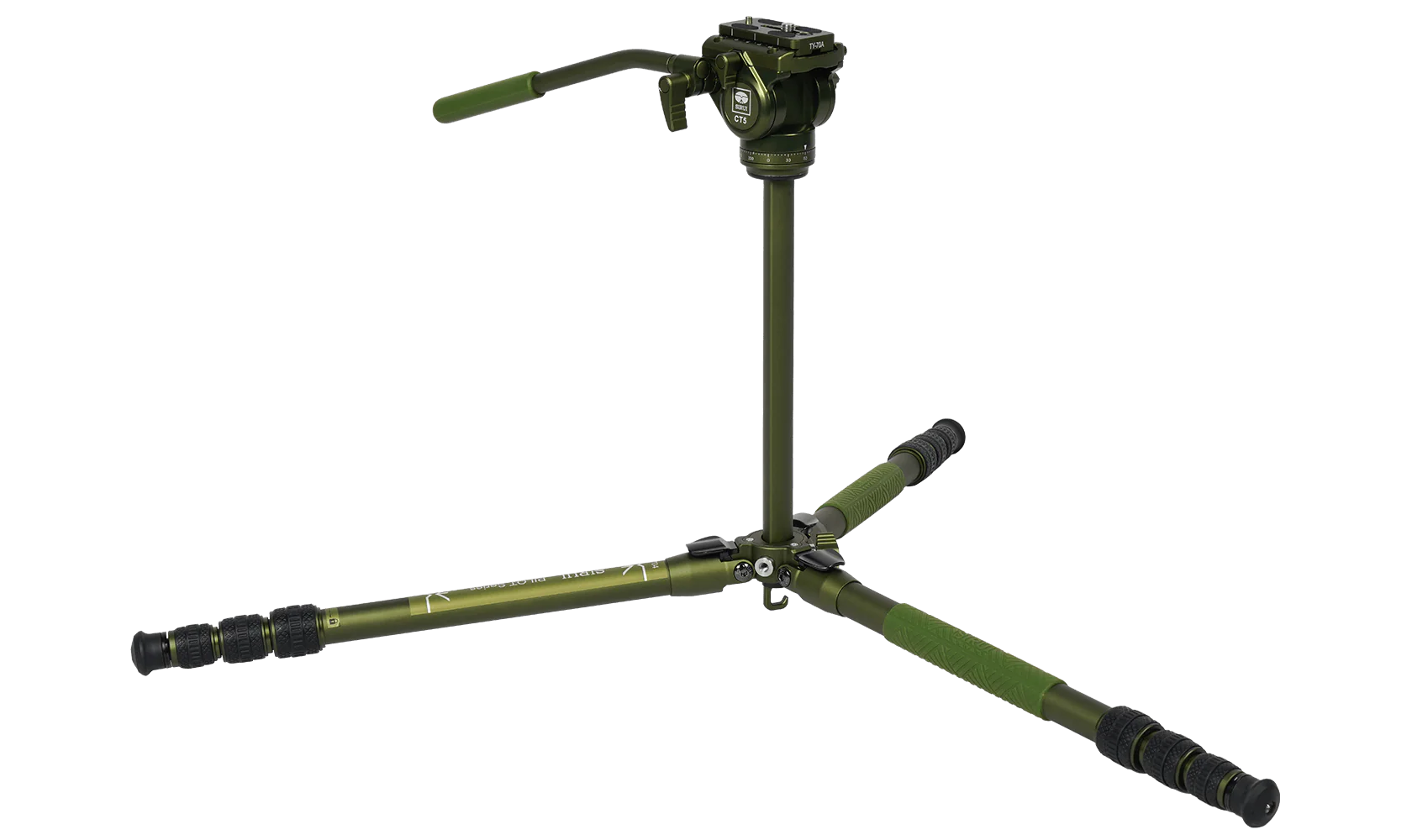

03.
Included Short Center Column
Included Short Center Column
Gain much lower angle and more stable shooting experience.
04.
More Details
More Details
Multi-direction
Hook
Pull the center column locking
knob to turn it 360¡ã in locking state.
Hang a backpack on the hook
to increase stability of the tripod.
Easy Operation
Semi-automatic flip locks are designed
to provide three leg angle options.
Pull the lock and lift the leg to
adjust leg angle. And press to reset.
Twist only a quarter turn with one
hand to extend or retract the legs.
Twist to the
left to loosen
Fast extend or
retract the legs
Fast extend or
retract the legs
Twist to the
right to tighten
Rubber Feet and
Retractable Spikes
The spikes can be twisted out
for convenient use and help
you capture image in
various scenes.
Accessories
Built-in 1/4¡±-20 and 3/8¡±-16
accessory ports allow easily
connecting accessories.

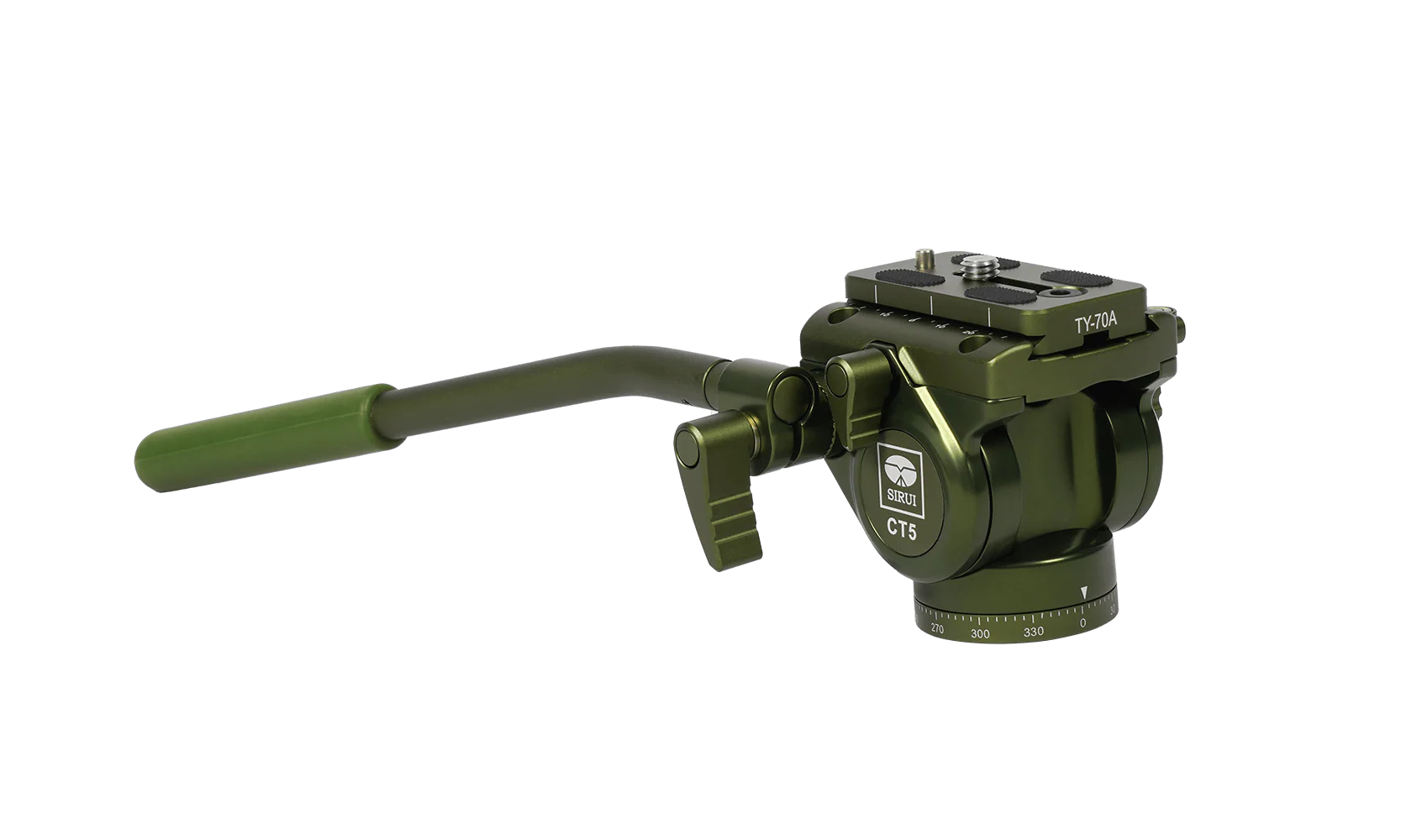

Fluid Video Head
Functions Introduction
A:Tilt Lock
B:Bubble Level
C:1/4¡±-20 Screw
D:Plate Movement Lock
E: £³/8¡±-16 Screw
F: Safety Pin
G:Panorama Base Lock
J: Safety Lock
K:Handle Lock
B:Bubble Level
C:1/4¡±-20 Screw
D:Plate Movement Lock
E: £³/8¡±-16 Screw
F: Safety Pin
G:Panorama Base Lock
J: Safety Lock
K:Handle Lock
Smooth Operation
Internal friction control systems for smooth shooting.
+90¡ã to -60¡ã Tilting
360¡ã panorama base with engraved index marks helps you know where you are each time when you want to do a manual panorama with your camera.
Adjustable Handle
Handle lock can be easily rotated to adjust or fix the angle of handle and even change direction of it for flexible shooting.
Double-Insurance Locking System
Double-insurance locking system prevents camera from accidental sliding and at the same time fix camera at any position.
Anti-Slip Rubber Pad
Safety Pin
Plate Lock
Built-in 1/4¡±-20 screw and 3/8¡±-16 screw can suit various equipment.
Spotting
scope
scope
SLR
camera
camera
Digital
camera
camera
telescope
Telephoto
lens
lens
Specifications
Model
CT04/GT04
Material
Aluminum Alloy
Sections
4
Max. Dia (mm/inch)
23.5/0.93
Min.Dia (mm/inch)
14.5/0.57
Min. Height (mm/inch)
80/3.15
Height (mm/inch)
1150/45.28
Max. Height (mm/inch)
1400/55.12
Retracted Height (mm/inch)
430/16.93
Weight (kg/lbs)
1.2/2.64
Max. Load (kg/lbs)
10/22.04
Head Model
CT5/GT5
Size (mm/inch)
300x120x83/11.81x4.72x3.27
Weight (kg/lbs)
0.6/1.32
Max.Load (kg/lbs)
3/6.61
Counterbalance (kg/lbs)
1/2.20
Height (mm/inch)
83/3.27
